Frames & Concealed Cisterns
T02-2113
Self Supporting Floor and Back Wall Mounted Dual Flush Slim Concealed Cistern for Wall Hung WC
| Installation | Ideal for prewall applications (backside wet wall, front dry wall) with the self supporting frame fixed to back wall and floor. May also be used in wet walls |
| Load Resistance | 400kg if assembled properly in wet wall. |
| Working Pressure Range | 0.2—16 bars |
| Fill Duration | 39 seconds for 6ltr at 3 bars |
| Flush Volume | 3/6litres (can be adjusted between 2,5—4.5lt / 4,5—6ltres |
| Supply Water Connection | 1/2″M |
| Bowl Fixing Bolt Axes | 180mm or 230mm |
| Insulation | Moulded Styrofoam against condensation and noise. |
| Part list in box | Protective channel, waste bend pipe set, wc connection set, installation manual, fixing set for brick and concrete |
| Stop Valve for Supply Line | Brass angle valve included in product |
| Packaging Dimensions | 160 (W) 1180 (L) 530 (H) mm |
| Weight | 15.5kg |
| Thickness | 125 – 195mm |
| Frame protection | Black powder coated frame with galvinized legs |
T02-0130-0240
T02-0130-0240 Dual Flush Slim Concealed Cistern for Floor Standing Back to Wall WC
Installation | May be used with wet or dry walls. |
Load Resistance | Does not carry load because it is used with floor standing bowls. |
Working Pressure Range | 0.2—16 bars |
Fill Duration | 39 seconds for 6ltr at 3 bars |
Flush Volume | 3/6litres (can be adjusted between 2,5—4.5lt / 4,5—6ltres |
Supply Water Connection | 1/2″M |
Insulation | Moulded Styrofoam against condensation and noise. |
Part list in box | Protective channel, net, installation manual, fixing set for brick |
Stop Valve for Supply Line | Brass angle valve included in product |
Packaging Dimensions | 120 (W) 820 (L) 580 (H) mm |
Weight | 5.5kg |
Thickness | 8.5cm |
T02-0112-0000

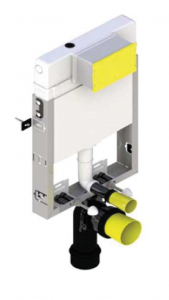

Concealed cistern for wet processing
CHARACTERISTICS
- WC cistern with support frame
- Galvanized steel frame
- Dual flush 3/6 L
- Insulated against condensation
- Quiet hydraulic float valve
- Pre-installed stop valve
- Water connection 1/2”
- Wall fixation kit
- Front control
SCOPE OF DELIVERY
- WC connection kit
- Fixation materials
- Masonry aid
- Discharge elbow PE 90 mm with reducer to 110 mm
- Mounting instructions
F2-0073
Self Supporting Back Wall and Floor
Mounted Prewall Urinal Installation Set
Installation | Ideal for prewall applications (backside wet wall, front dy wall) with self supporting frame fixed to back wall and floor. May also be used in wet walls. |
Self Supporting | Frame with 30x30cm profile and adjustable feet. |
Easy Installation | Installation set with bracket fixing devices |
Resistant Frame | To 200 hours of salt spray test according to NSS standards |
Bowl Fixing Bolt Axes | 180mm or 230mm |
Insulation | Moulded Styrofoam against condensation and noise. |
Packaging Dimensions | 160 (W) 1180 (L) 530 (H) mm |
Weight | 13kg |
Thickness | 12—18cm |
CN12200C

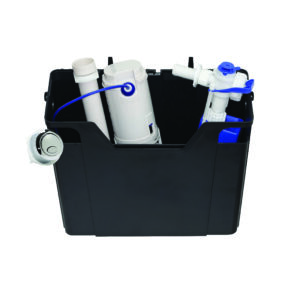

Compact Cistern Assembled
+Ftg

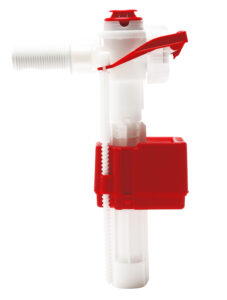

Product Description | Compact pre-assembled cistern including elbow & isolation valve. |
Product Details | Pre-assembled for quick installation ½” shank Fluidmaster 747UK ultra quiet fill valve Unique snap release for easy access and maintenance Integral isolation valve enables easy maintenance |

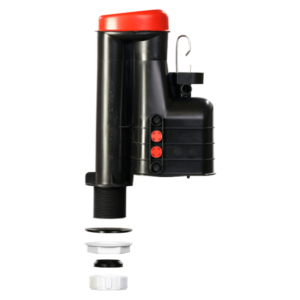

Syphons

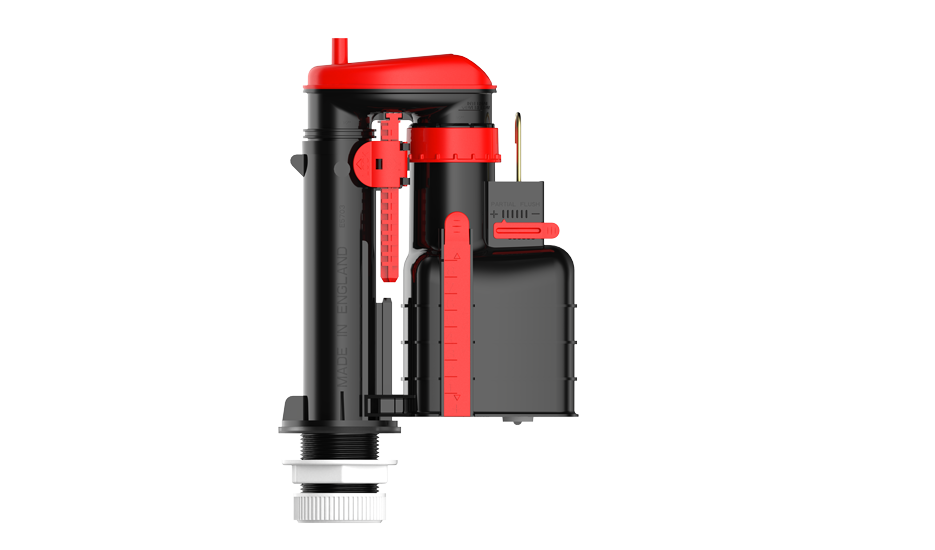

Pro Ultra
Universal Dual Flush Syphon
Part Number | 19464 |
Product Details | Fits virtually all 1 ½” lever operated cisterns Long Lasting Butterfly Diaphragm Rapid Height Adjustment Fully adjustable from 7.5” – 9.5” Retrofits Other Syphons* Comes with a clip-in adapter Adjustable Full Flush Infinitely adjustable flush volumes The only syphon to feature variable part flush Optimised flushing dynamics allows easy flush activation Twin Flow Performance Cap Anti-Turbulence Outlet Optimises and increases flow |
Compact Dual Flush Syphon
1.5" BSP
Part Number 8″ fixed height | DFA08025C |
Part Number 9.5″ fixed height | DFA08025C |
Dual Flush Syphon
1.5" BSP
Part Number 7.5″ Fixed Height | DFA07525 |
Part Number 8″ Fixed Height | DFA08025 |
Flush Valves

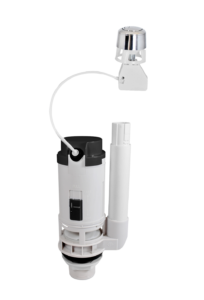

Button dual flush valve
PRO550UK
Part Number | PRO550UK |
Product Description | Fluidmaster Pro Dual Flush Button operated valve. |
Materials | ABS, Nitrile Rubber, POM, Rubber, Silicon, Stainless Steel |
Approx. Weight (kg) | 0.450 |
Product Dimensions | L 120mm x W 80mm x H 210mm |
Packaging | Boxed |
Product Type | WC Flush Valve |
Lever dual flush valve
PRO750UK
Part Number | PRO750UK |

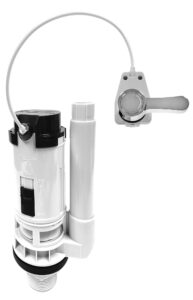

Product Description | Fluidmaster Lever Operated Dual Flush Valve |
Materials | ABS, Nitrile Rubber, POM, Rubber, Silicon, Stainless Steel |
Approx. Weight (kg) | 0.450 |
Product Dimensions | L 120mm x W 80mm x H 210mm |
Packaging | Boxed |
Product Type | WC Flush Valve |

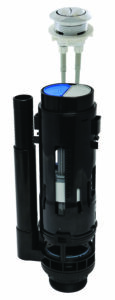

800 Dual Flush Valve
1.5" & Adapter available to suit 2" BSP Mechanical Button
Part Number | PRO820UK |

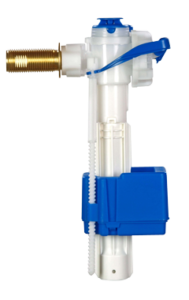

Fill Valves

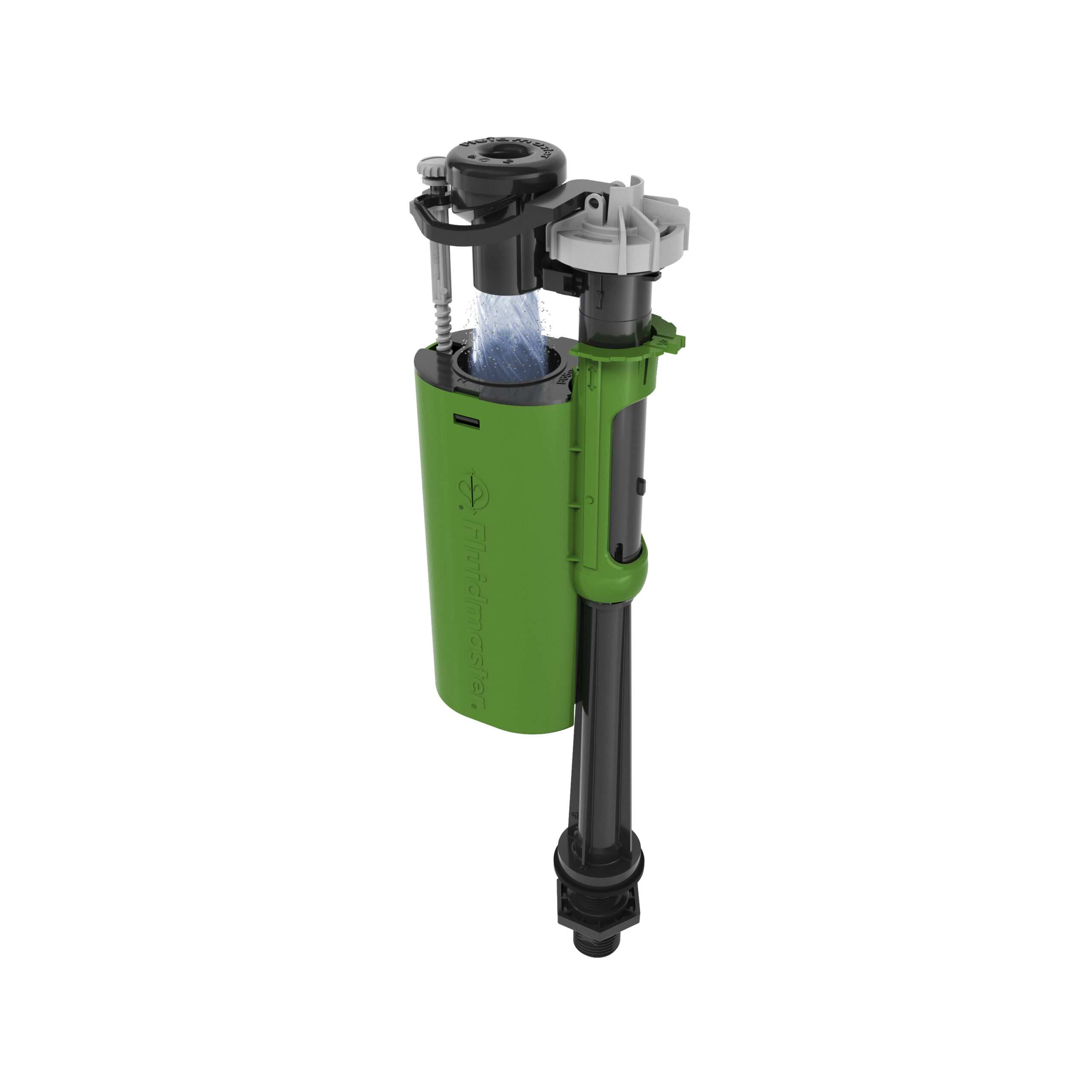

Airgap 6000
Delayed Fill Plastic Shanked
Part Number 1/2″ | 6410-D-001-P9 / 6410-D-001-P30 |
Product Description | Water saving plastic shanked bottom entry feill valve |
Product Dimensions | Lx100mm Wx55mm H: Adjustable from 292mm to 345mm (Thread 50mm) |
Packaging | Individually boxed |
Product Type | Part 4 Compact Type Fill Valve |

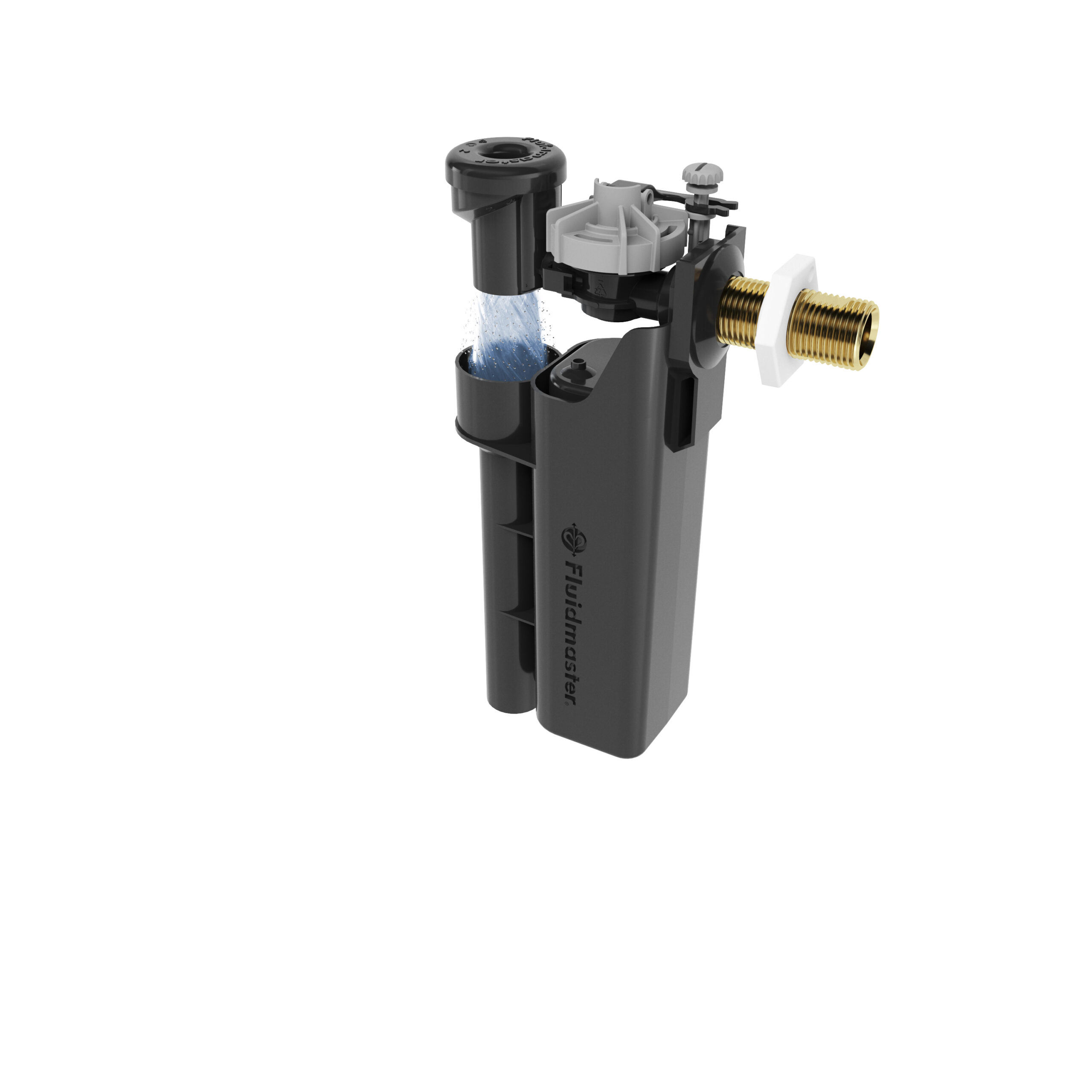

Airgap 6000 Non Delay

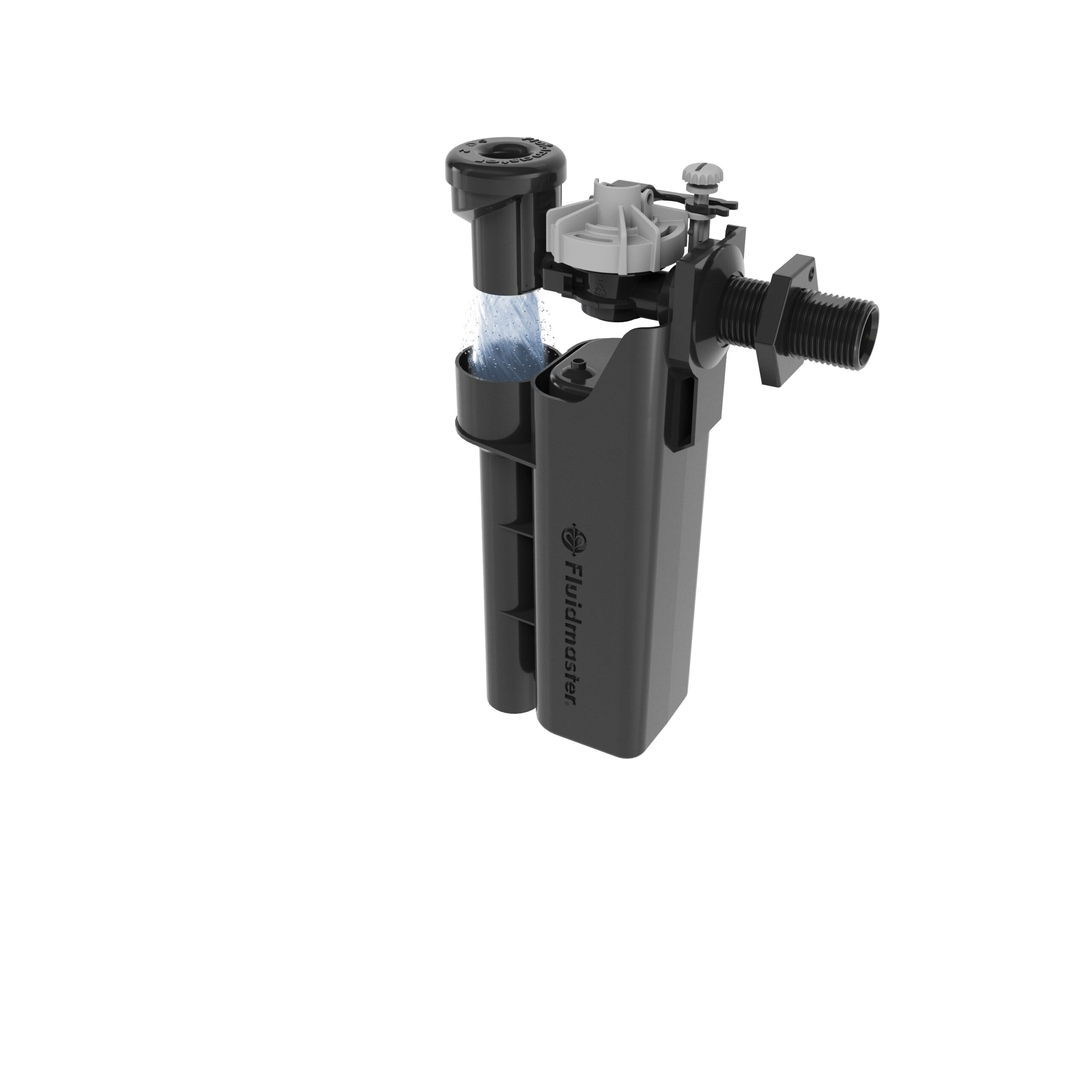

Non Delay Plastic Shanked
Part Number 1/2″ | 6710-S-001-P10 |
Product Description | Non delay 1/2″ plastic shanked side entry fill valve |
Product Dimensions | 155mm Long x 50mm Dia |
Packaging | Individually boxed |
Product Type | Part 4 Compact Type Fill Valve |
Airgap 6000
Non Delay Plastic Shanked
Part Number 1/2″ | 6410-S-001-P9 / 6410-S-001-P30 |
Product Description | Non delay 1/2″ plastic shanked bottom entry fill valve |
Product Dimensions | Lx100mm Wx55mm H: Adjustable from 292mm to 345mm (Thread 50mm) |
Packaging | Individually boxed |
Product Type | Part 4 Compact Type Fill Valve |
Airgap 6000
Delayed Plastic Shanked
Part Number 1/2″ | 6710-D-001-P10 |
Product Description | Water saving plastic shanked side entry feill valve |
Product Dimensions | 155mm Long x 50mm Dia |
Packaging | Individually boxed |
Product Type | Part 4 Compact Type Fill Valve |

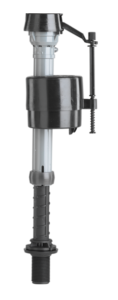

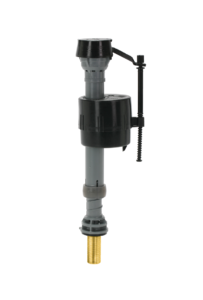

400 Series Compact
1/2" Brass Bottom Entry
Adjustable
Part Number | PRO45B |
Adjustable height from 230mm to 355mm (9″ to 14″). Heavy Duty Brass Shank Proprietary pilot technology provides consistent water level at various pressures. Wide range of adjustability and valve options for most applications. asy to install Proven and reliable quality Ultra Quiet Long Life Performance Fast Refill Minimal Water Hammer Standard operating pressure: 0.2 Bar (2.6 psi) – 15.85 Bar (230 psi). Water level range: 4.0″ (102mm) lowest, 11.5″ (292 mm) highest Critical Level marking: 2” (50mm) from the top Recommended torque range: 6Nm to 10Nm (Approx. hand tight plus 1/2 to 3/4 turn) Footprint: 97 mm x 72 mm. Compliant with BS1212-4 when a suitable backflow prevention device is fitted. | |

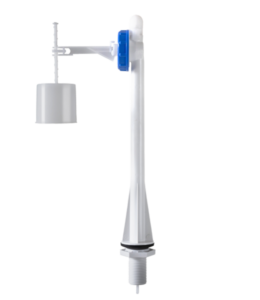

400 Series Compact
1/2" Plastic Bottom Entry
Adjustable

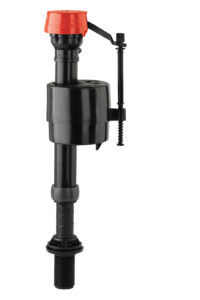

Part Number | PRO400UK |
Adjustable height from 230mm to 355mm (9″ to 14″). 1/2″ BSP Plastic Shank Proprietary pilot technology provides consistent water level at various pressures. Wide range of adjustability and valve options for most applications. Easy to install Proven and reliable quality Ultra Quiet Long Life Performance Fast Refill Minimal Water Hammer Standard operating pressure: 0.2 Bar (2.6 psi) – 15.85 Bar (230 psi). Water level range: 4.0″ (102mm) lowest, 11.5″ (292 mm) highest Critical Level marking: 2” (50mm) from the top Recommended torque range: 6Nm to 10Nm (Approx. hand tight plus 1/2 to 3/4 turn) Footprint: 97 mm x 72 mm. | |
400 Series Compact
Self Supporting Back Wall and Floor Mounted Prewall Urinal Installation Set
Part Number | 400UK073 |
Adjustable height from 9″ to 13.5″. Proprietary pilot technology provides consistent water level at various pressures. Wide range of adjustability and valve options for most applications. Easy to install Proven and reliable quality Standard operating pressure: 0.2 Bar (2.6 psi) – 15.85 Bar (230 psi). Water level range: 4.0″ (102mm) lowest, 11.5″ (292 mm) highest Critical Level marking: 2” (50mm) from the top Recommended torque range: 6Nm to 10Nm (Approx. hand tight plus 1/2 to 3/4 turn) Footprint: 97 mm x 72 mm. | |

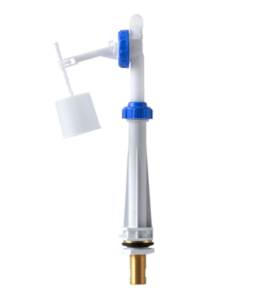

400 Series Compact
3/8" Brass Bottom Entry Adjustable
Part Number | 400EL |
Adjustable height from 230mm to 355mm (9″ to 14″). 3/8″ BSP Brass Shank Proprietary pilot technology provides consistent water level at various pressures. Wide range of adjustability and valve options for most applications. Easy to install Proven and reliable quality Ultra Quiet Long Life Performance Fast Refill Minimal Water Hammer Standard operating pressure: 0.2 Bar (2.6 psi) – 15.85 Bar (230 psi). Water level range: 4.0″ (102mm) lowest, 11.5″ (292 mm) highest Critical Level marking: 2” (50mm) from the top Recommended torque range: 6Nm to 10Nm (Approx. hand tight plus 1/2 to 3/4 turn) Footprint: 97 mm x 72 mm. | |

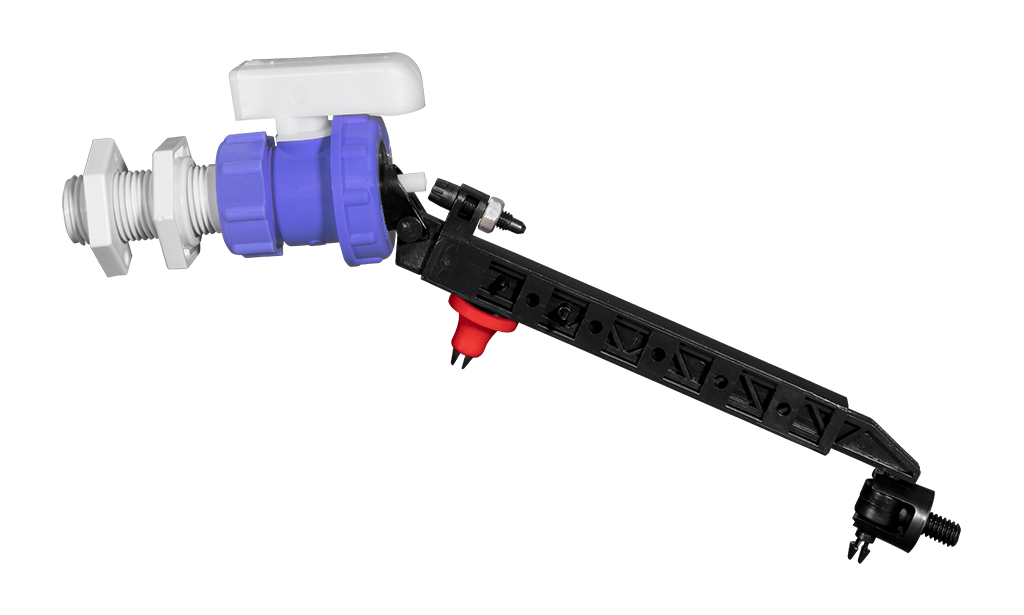

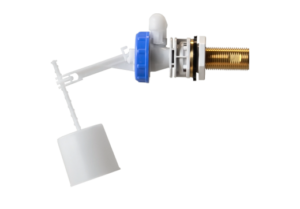

Delchem Ball Valve
1/2" Plastic Side Entry
Part Number: | B801A |
Product Description | Adjustable arm lengths |
